Brand: Nangong Vehicles, Model: NGADF-18/53-4H, Load Capacity: 2.2 tons, Panel Size: 5.3*1.8 meters, Net Weight: 1070KG, Color: white;

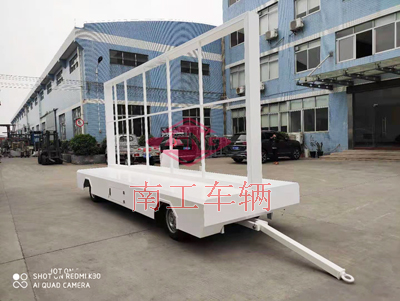

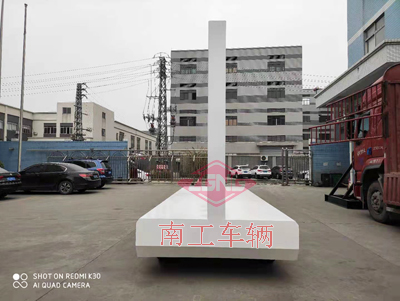

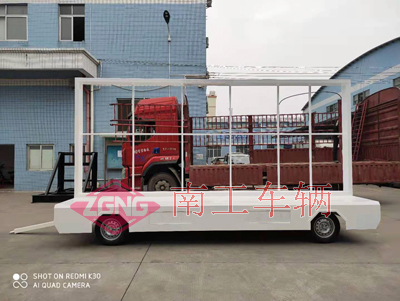

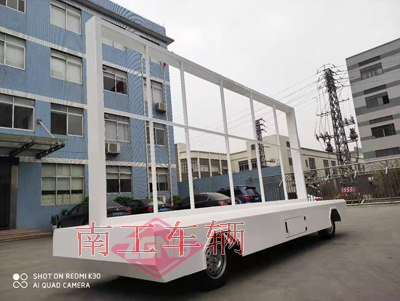

Detailed parameters of the 2.2-ton fixed LED advertising screen trailer:

1. The towing capacity of the trailer is 2.2 tons, with a body length of 5.3 meters and a width of 1.8 meters. The frame is welded with square and rectangular tubes, and the surface is fully enclosed with cold-rolled steel plates;

2. Equipped with 4 165/70R13 tires (each tire is loaded with 0.56T);

3. The steering is of the ram horn type. This vehicle can be towed and manually steered;

4. Laser cut speaker sound amplification holes on one side of the car body's surrounding edge;

5. Accompanied by a power amplifier box;

6. Spray white paint on the entire vehicle;

7. The screen frame is designed according to the installation dimensions provided by the customer for the box body. The overall external dimensions of the screen frame are 5.19 meters in length and 2.15 meters in width;

8. The net size of the LED display box is 5.12*2.08 meters, with a gap of about 10MM for length and width;

9. The screen frame cannot be raised or lowered, nor can it be rotated. Production shall be subject to the plan confirmed by both parties.

The 2.2-ton fixed LED advertising screen trailer, custom-made by Nangong Vehicles, is non-powered and requires a forklift or tractor for towing. It features low cost, competitive pricing, and an attractive appearance.

Application: Used for publicity, product promotion, brand promotion, on-site exhibitions, sports events, concerts, music festivals, and talent shows in enterprises and institutions. It can also be used for on-site exhibitions, exchanges, and interactions with audiences or consumers in busy commercial areas, squares, residential areas, public parks, and other areas. The scope of promotion is wide, allowing customers to achieve better advertising effects.
