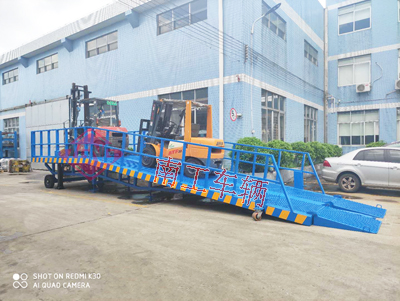

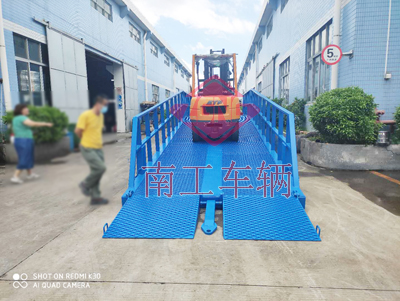

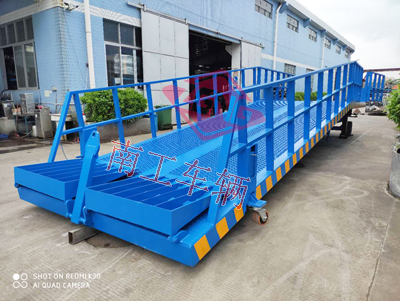

Brand: Nangong, Model: NGART12M-120/26-2S, Load Capacity: 12 tons, Table Size: 12 * 2.6 meters, Tire: 600-9 Solid Tire, Color: Blue, Net Weight: 4820KG;

12 ton mobile boarding bridge detailed parameters:

1. This vehicle has a load capacity of 12T, with two 600-9 solid tires at the front and a flip type universal wheel and towing rod at the rear for easy forklift towing;

2. Dimensions of the boarding bridge: The total length of the platform is 12M, the outer width is 2.6M, the platform height is 1.2M, and the guardrail height is 1M. (The guardrails on both sides of the platform are designed as double door structures) The surface is made of 6mm patterned boards and 6mm diamond shaped anti slip nets;

3. The length of the bridge deck platform is 3.5M, the slope length is 7M, the length of the front transition plate is 0.5M, and the length of the rear transition plate is 1M. The boarding bridge is equipped with a pair of mechanical support legs for semi-trailer, and the adjustment height is between 1200MM-1650MM;

4. The main beam adopts a 25 # steel structure, the auxiliary beam adopts an 18 # steel structure, and the guardrail adopts an 8 # steel structure;

5. Process: Made by welding with carbon dioxide protection;

6. Color: Blue;

The 12 ton mobile boarding bridge high guardrail type Nangong vehicle is customized for many years. The Nangong boarding bridge has high work efficiency, heavy load capacity, safety and durability.

Application scenario: Dengben Bridge is a cargo loading and unloading auxiliary equipment used in conjunction with forklifts. Forklifts can directly enter the interior of the carriage through the boarding bridge for batch loading and unloading of goods, with one operation throughout the entire process.
