Brand: Nangong, Model: NGRT08H-45/25, Load capacity: 8 tons, Table size: 4.5*2.5 meters, Net weight: 2960KG, Color: blue;

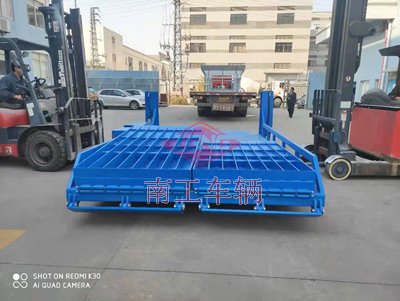

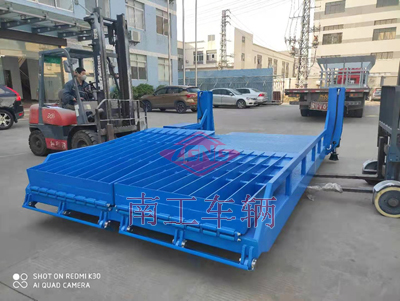

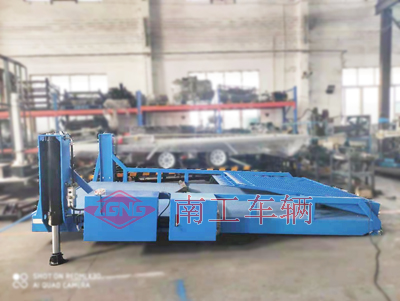

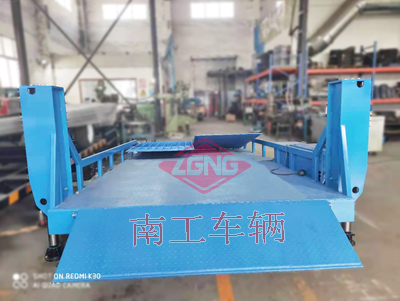

Detailed parameters of non-standard customized 8-ton mobile boarding bridge:

1. The boarding bridge has a dynamic load capacity of 8 tons and a static load capacity of 20 tons. Its working range is 206-1000, with 500-800 being a temporary avoidance range. The speed can be adjusted according to actual needs;

2. The flipping speed of the transition bridge plate 1 can be adjusted as needed;

3. The power system of this bridge utilizes a hydraulic system to drive the hydraulic cylinders to complete corresponding actions. The hydraulic cylinders often leak oil. Based on the current design, it is necessary to increase the number of piston sealing rings and add an O-ring seal to the cylinder cover. The hydraulic cylinders adopt a bidirectional oil supply drive method to complete the long-distance lowering action of the bridge deck;

4. The movements of the bridge deck and the transition slab are independently controlled;

5. Safety design: Implement pressure maintaining design for the hydraulic system, and install an explosion-proof valve at the lifting oil port;

6. The adjustment of the bridge deck elevation position utilizes photoelectric sensing;

7. Adopt high-strength steel welding integral steel structure;

8. The electric control box and the hydraulic control box are separated and independent to prevent oil contamination from entering the electrical components of the electric control box;

9. Add wire-controlled operation buttons on the basis of remote control;

10. Color: Blue.

The mobile boarding bridge is akin to a mobile, height-adjustable steel structure ramp. By manually turning the support leg handle, the gradient of the boarding bridge can be easily adjusted, allowing for flexible connection with truck bodies of varying heights. Forklifts can directly drive into the truck body for bulk loading and unloading operations. It is currently a relatively mature auxiliary loading and unloading platform. This boarding bridge is a customized product tailored for our customers.

Application: Mobile boarding bridges are primarily used in loading and unloading operations where there is no designated loading platform or where goods need to be loaded and unloaded on-the-go. If there is no established loading platform at the logistics loading and unloading site, a mobile forklift boarding bridge is one of the most suitable solutions.
