Brand: Nangong, Model: 4T (KMTC-160), Load Capacity: 4 tons, Frame Size: 5.37*2.26 meters, Net Weight: 1110KG, Color: Matte Black;

Detailed parameters of 4-ton skeleton flatbed trailer with small tail box:

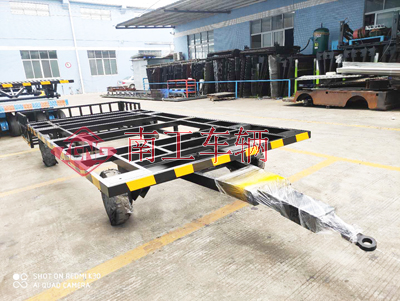

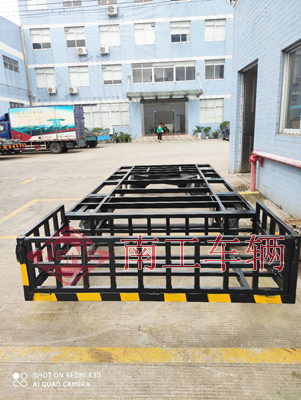

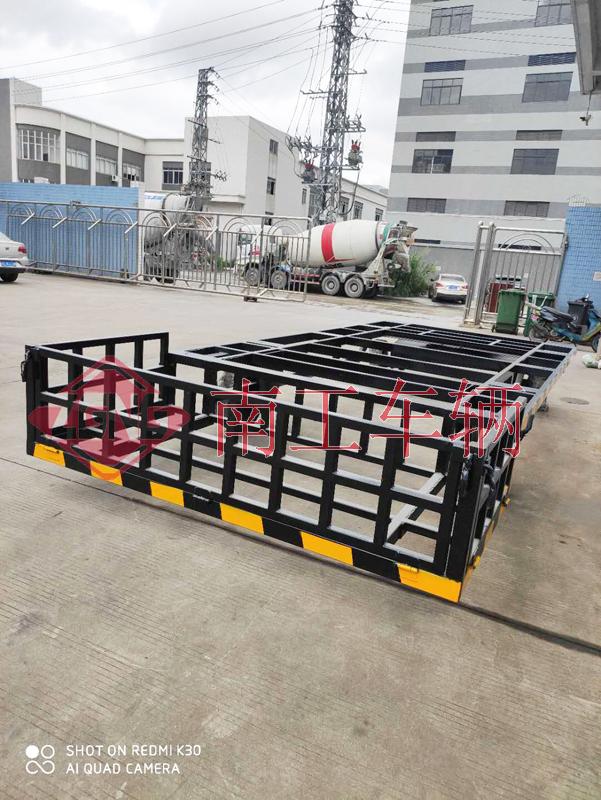

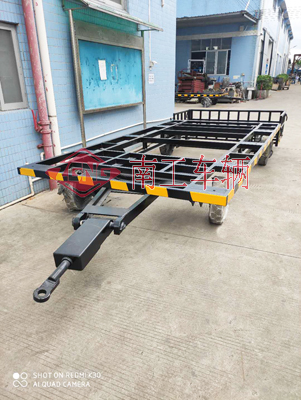

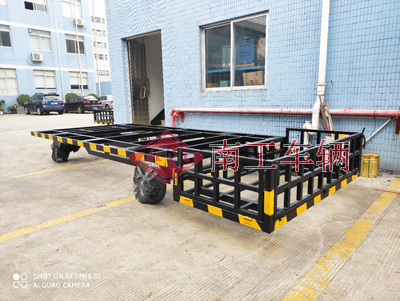

1. The flatbed truck has a load capacity of 4 tons, constructed with 8-gauge steel welding. The platform measures 5.37 meters in length, 2.26 meters in width, and approximately 0.65 meters in height. The dimensions of the load-bearing items are 4.2*2.26*1.5 meters. This vehicle features a skeleton structure, with a 4MM aluminum checkered plate at the rear, and a sunken frame at the tail end, equipped with a tiltable movable plate (both sides and the rear can be tilted, welded as shown in the attached diagram);

2. This vehicle is equipped with 4 solid tires (without brakes) of model 600-9, with a single wheel load capacity of 1.9T, rigid suspension, and a rated speed within 15KM/H. When towing or turning on roads, the speed should not be less than 5KM/H;

3. A 4T turntable-style rotating frame, with the front wheels capable of 180-degree rotation, and a buffer-style traction frame (vertically fixed when not in use);

4. Connect the B-shaped latch with anti-drag hook (self-locking) for sales promotion;

5. Equipped with 4 threaded mechanical legs, the front and rear wheels are equipped with removable wheel chocks. When the legs are lowered and the wheel chocks are placed, it can be parked on a 5-degree slope;

6. Color: Matte black, with yellow warning stripes sprayed around the edges;

7. Documents: The product comes with a product qualification certificate and an inspection report.

4-ton skeleton flatbed trailer with small tail box, custom-made by Nangong Vehicle, is available for non-standard orders all year round. It offers low price, good quality, and long service life.

Application: The skeleton-type tool trailer is designed for mobile shops, mobile homes, mobile booths, etc., with a heavy load capacity and long service life. This model of trailer is used for airport transportation equipment.
