Brand: Nangong, Model: PT05-29W56L, Load capacity: 5 tons, Table size: 5.6*2.9 meters, Net weight: 1830KG, Color: matte black;

Detailed parameters of the 5-ton 2.9-meter wide flatbed trailer:

1. The load capacity is 5 tons, with an effective cargo area of 2900*5600MM. The height of the tabletop from the ground is about 650MM. The main structure is made of 8# national standard steel, and the tabletop is covered with 4MM checkered plate;

2. Equip with 4 600-9 solid tires;

3. The slewing mechanism is a 5-ton standard type, featuring a 180-degree slewing frame;

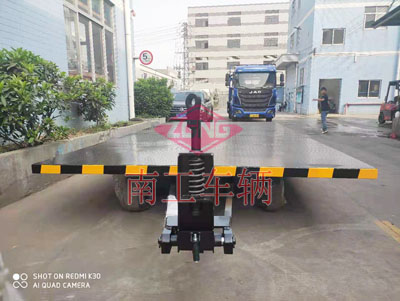

4. Compression spring buffering traction mechanism, with adjustable and fixed traction frame; 180-degree rotation, ensuring smooth turning;

5. Equip with one universal joint connector;

6. Equipped with 4 couplers on one side;

7. Color: Matte black, with yellow warning stripes sprayed around the edges.

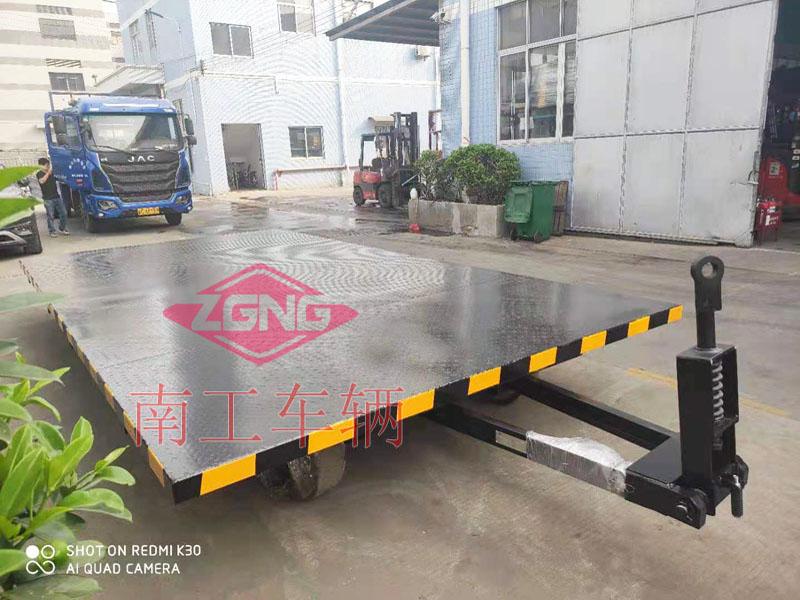

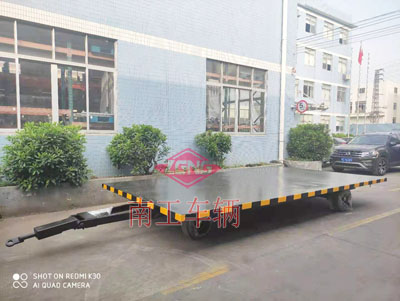

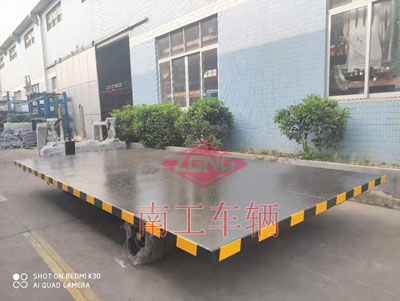

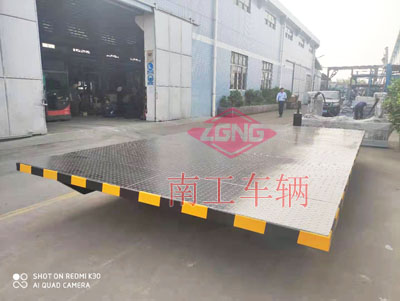

The 5-ton, 2.9-meter-wide transfer platform flatbed trailer, custom-made by Nangong Vehicles for non-standard applications over the years, is towed by forklifts or tractors without its own power. It features a stable structure, high load capacity, simple maintenance, stable performance, low cost, and a long service life. Applications: Flatbed trailers are widely used in manufacturing, construction, transportation, and other industries for short-distance turnover transportation, with heavy loads and low costs.
