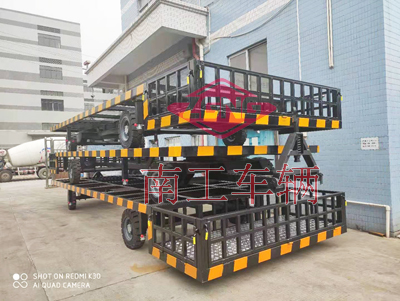

8-ton skeleton flatbed trailer with tail box frame

Brand: Nangong, Model: 8T (TFTC-400), Load Capacity: 8 tons, Frame Size: 7.67*2.8 meters, Net Weight: 2290KG, Color: black;

Detailed parameters of 8-ton skeleton flatbed trailer with tail box:

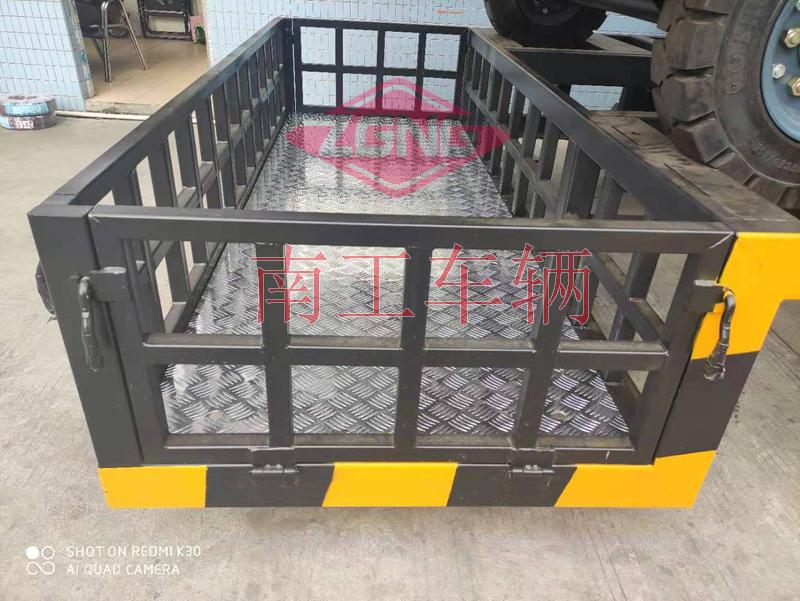

1. The flatbed truck has a load capacity of 8 tons and is welded with 14/12 steel sections. The platform is 7.67 meters long, 2.8 meters wide, and approximately 0.84 meters high. The dimensions of the load-bearing items are 6500*2800*1900MM. This vehicle has a frame structure, with a 4MM aluminum checkered plate on the tail. The rear of the vehicle features a sunken frame with a tiltable movable plate (both sides and the rear can be tilted, welded as per the drawing) (subject to the plan confirmed by both parties);

2. This vehicle is equipped with 4 solid tires (without brakes) of model 700-12, with a single-wheel load capacity of 3.01 tons, rigid suspension, and a rated speed within 15KM/H. When towing or turning on roads, the speed should not be less than 5KM/H;

3. A turntable-style 8-ton rotating frame, with the front wheels capable of 180-degree rotation, and a buffer-type traction frame (vertically fixed when not in use);

4. The connecting pin is a B-shaped latch with an anti-drag hook (self-locking);

5. Equipped with 4 threaded mechanical legs, front and rear wheels are equipped with removable wheel chocks. When the legs are lowered and the wheel chocks are placed, it can be parked on a slope of 5 degrees;

6. Color: Matte black, with yellow warning stripes sprayed around the edges;

7. Documents: The product comes with a product certificate and an inspection report.

We produce a large quantity of 8-ton skeleton flatbed trailers with tail boxes for Nankong vehicles, and can customize non-standard models according to customer requirements. Nankong flatbed trailers are characterized by good quality, competitive pricing, large load capacity, and long service life.

Application: Used in various industries such as machinery, metallurgy, warehousing, and transportation. It is suitable for short-distance turnover of goods in various industries when used in conjunction with tractors and flatbed trucks.
