Brand: Nangong, Model: KMTC-160, Load Capacity: 4 tons, Frame Size: 5.37*2.26 meters, Net Weight: 1110KG, Color: Matte Black;

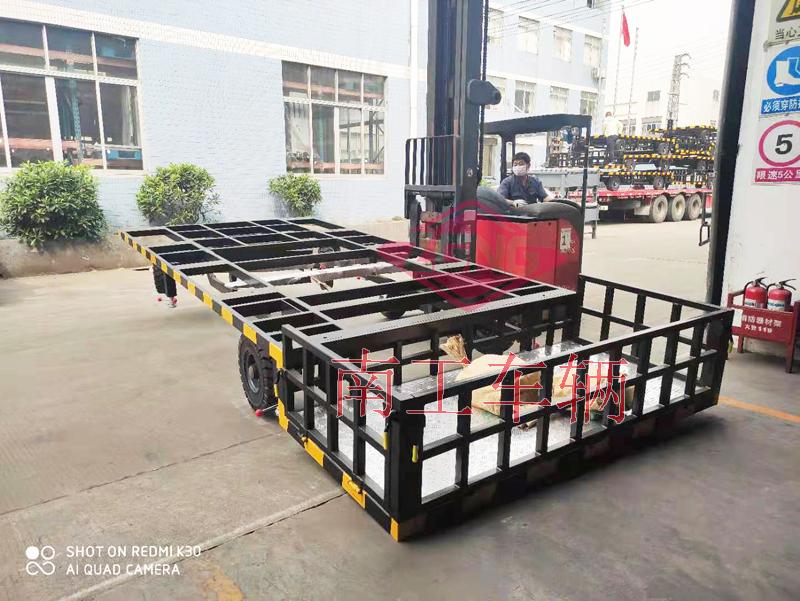

Detailed parameters of 4-ton airport skeleton flatbed trailer:

1. The flatbed truck has a load capacity of 4 tons, constructed with 8-gauge steel welding. The platform measures 5.37 meters in length, 2.26 meters in width, and approximately 0.65 meters in height. The dimensions of the items it can carry are 4.2*2.26*1.5 meters. This vehicle is of a skeleton structure, with a 4MM aluminum checkered plate at the tail end. The rear of the vehicle features a sunken frame with a tiltable movable plate (both sides and the rear can be tilted, welded as per the diagram);

2. This vehicle is equipped with four 600-9 solid tires (without brakes), with a single-wheel load capacity of 1.9T, rigid suspension, and a rated speed within 15KM/H. The towing and turning capabilities on roads are not less than 5KM/H;

3. A 4T rotary frame with a turntable design, where the front wheels can rotate 180 degrees, and a buffer-type traction frame (vertically fixed when not in use);

4. The connecting pin is a B-shaped latch with an anti-drag hook (self-locking);

5. Equipped with 4 threaded mechanical legs, front and rear equipped with removable wheel chocks, the legs can be lowered and the wheel chocks can be placed to allow parking on a 5-degree slope;

6. Color: Matte black, with yellow warning stripes sprayed around the edges;

7. Documents: Product qualification certificate and inspection report provided with the product upon delivery;

4-ton airport frame-type flatbed trailers are custom-made by Nangong all year round. We can design and produce according to customer requirements, and can process and produce with supplied drawings, materials, or samples. Our products feature short delivery times, long lifespan, and competitive prices!

Application: Used for back-and-forth loading and unloading, as well as transportation between airports, ports, train stations, factories, and large warehouses. It boasts a large load capacity, excellent quality, and fast delivery!
