Brand: Nangong, Model: NGTT05BS-24/62-4S, Load Capacity: 5 tons, Frame Size: 6.2*2.4 meters, Net Weight: 1670KG, Color: Blue;

Detailed parameters of 5-ton flatbed trailer:

1. Full-trailer, with a load capacity of 5T, length of 6.2 meters, width of 2.4 meters, and height of about 0.68 meters. The main frame is welded with 10# steel, and the surface is covered with 4MM checkered plates. Four rope hooks for binding are provided at the bottom of both sides of the plate surface;

2. The tires are four 600-9 solid tires, with a single wheel load of 1.9 tons and a speed of 15KM/H;

3. This vehicle is equipped with leaf spring shock absorbers and parking brakes (handbrake, dual-wheel brakes);

4. The traction mechanism is of a buffer type, and the steering mechanism is a rotary table type with a 5-ton machine turning assembly, ensuring stable operation and long service life;

5. The front wheels can rotate 180 degrees left and right, facilitating steering in tight radii;

6. Color: Sky blue, with yellow warning signs sprayed around.

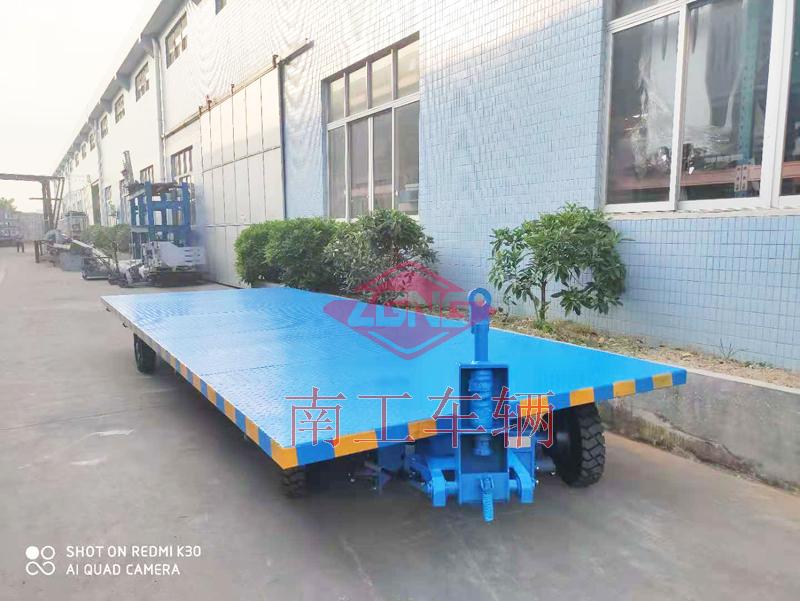

Non-powered towing tool trailer, 5-ton flatbed trailer, long-term customization by Nangong Vehicles. Nangong flatbed trailers feature flexible steering, low chassis, large load capacity, low manufacturing cost, and high transportation efficiency.

Application: Used in various industries such as machinery, metallurgy, warehousing, and transportation, for short-distance turnover of goods, with heavy load capacity, low cost, and high efficiency.
