Brand: Nangong, Model: NGTT05SB-22/42-4H, Load Capacity: 5 tons, Frame Size: 4.2*2.2 meters, Net Weight: 1020KG, Color: gray;

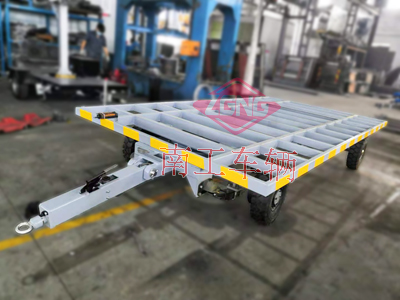

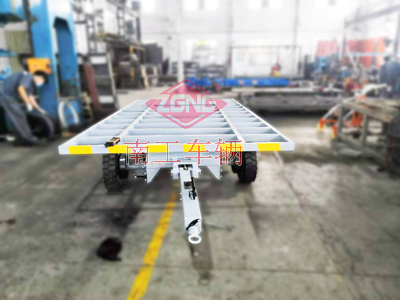

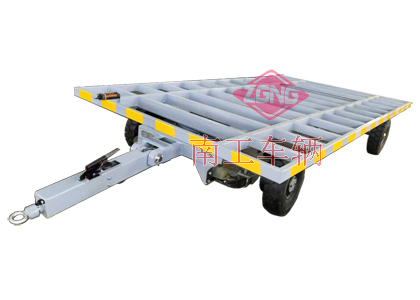

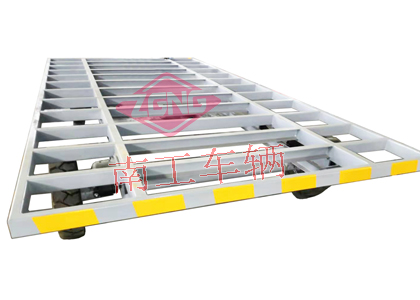

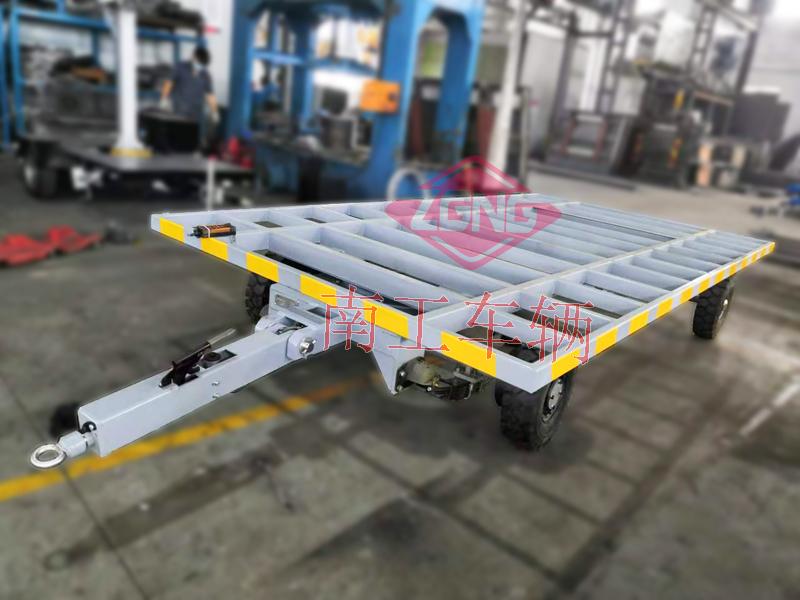

Detailed parameters of 5-ton skeleton-type flatbed trailer with brakes:

1. The trailer has a load capacity of 5 tons, with dimensions of 4.2 meters in length, 2.2 meters in width, and approximately 0.75 meters in height. The main beam is constructed with 10-gauge steel, and this vehicle is of a frame-type without flooring;

2. The tires are four 600-9 pneumatic tires, with a single wheel load of 1.5 tons and a speed limit of 30KM/H;

3. This vehicle is equipped with parking brake (hand brake, dual-wheel brake);

4. This vehicle is equipped with leaf spring shock absorbers;

5. The front wheels can rotate 180 degrees left and right, facilitating steering in tight radii;

6. The steering mechanism is a 5-ton rotary assembly of a turntable-type machine, featuring stable operation and long service life;

7. Equip with one connector and one pin;

8. Color: gray, with yellow warning stripes sprayed around the edges.

Nangong has long been engaged in the large-scale non-standard customization of 5-ton skeleton-type flatbed trailers with brakes. We can process and produce according to customer needs. Nangong trailers have high load-bearing capacity, long service life, and affordable prices.

Application: Suitable for short-distance transportation and turnover of various boxes, containers, motorhomes, mobile newspaper kiosks, mobile shops, etc.
