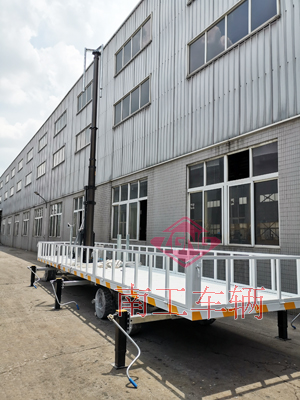

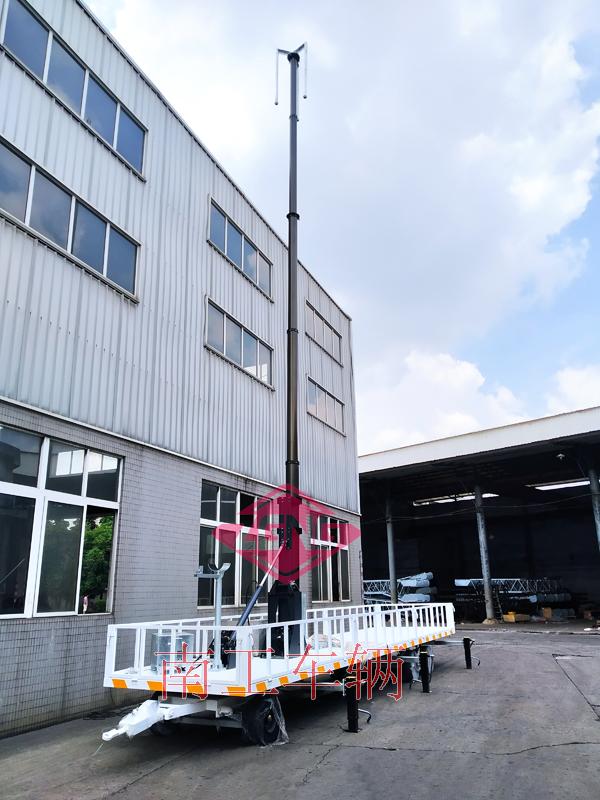

7-ton mobile towing flatbed tool trailer

Brand: Nangong, Model: NGTT07FCSM-20/100-6S, Table size: 10*2 meters, Load capacity: 7 tons, Net weight: 3.2 tons, Color: grayish white

Technical requirements for 7-ton mobile towing flatbed tool trailer (specific details shall be implemented according to the plan confirmed by both parties):

1. Load capacity: 7 tons;

2. Table size: length 10 meters, width 2 meters, height approximately 0.8 meters;

3. Steel: The two main beams are welded using 20# Q235 channel steel, and the surrounding main support structures are welded using Q235 100*50*4 square tubes. The plate surface is covered with 6mm checkered plates;

4. Tires: 6 solid tires of model 650-10, with a single wheel load capacity of 2.3T;

5. Rated speed: 15km/h;

6. Rotating assembly: 7T rotary table type rotating assembly;

7. Traction frame: buffer-type 180-degree rotating traction frame;

8. Suspension system: Three-axle suspension with leaf spring shock absorbers, effectively cushioning bumps caused by uneven ground;

9. Outriggers: Equipped with 3 retractable mechanical outriggers on each side, each with a capacity of 3 tons, and a single-side retractable range of 500mm;

10. Guardrail: The surrounding area is equipped with a flip-type guardrail (guardrail height 0.6m) with fixed square tubes at the four corners;

11. Welding requirements: Full welding shall be adopted for the welding between the main beam and the channel steel, as well as between the main frame and the channel steel. Discontinuous welding shall be adopted for the connection of checkered plates.

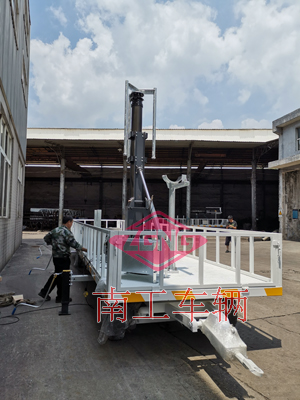

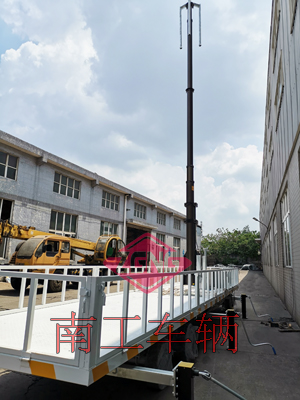

7-ton mobile towed flatbed tool trailer, custom-made by Nangong Vehicles, has been in use for many years. The Nangong flatbed trailer features a stable structure, high load capacity, simple maintenance, stable performance, low cost, and a long service life. This vehicle is used for the transportation of mobile 5G signal equipment. Application scenarios: used for short-distance transportation and turnover of goods at airports, ports, train stations, factory workshops, and large warehouses.
