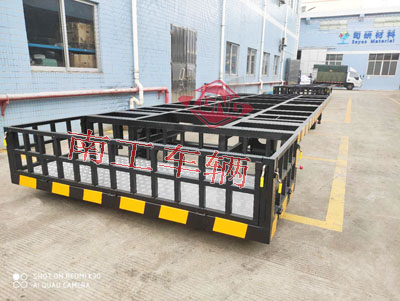

Brand: Nangong, Model: 8TTFTC-400, Board Size: 7.67 * 2.8 meters, Load Capacity: 8 tons, Net Weight: 2.29 tons, Color: Black;

Detailed parameters of 8T flatbed trailer:

1. The TFTC-400 flatbed truck has a load-bearing capacity of 8T and is welded with platform steel (14 # 12 #). The platform is 2.8 meters wide, 7.67 meters long, and approximately 0.84 meters high (with a size of 6.5 * 2.8 * 1.9 meters for carrying items). The platform is covered with aluminum patterned plates and has a skeleton structure. The rear of the truck is a sunken frame with movable plates (which can be flipped on both sides and the rear, welded according to the diagram);

2. This car has 4 models of 700-12 solid tires (without brakes), with a speed of 15KM/H, towing to turning roads not less than 5KM/H, a single wheel load capacity of 3.01 tons, and a fresh suspension;

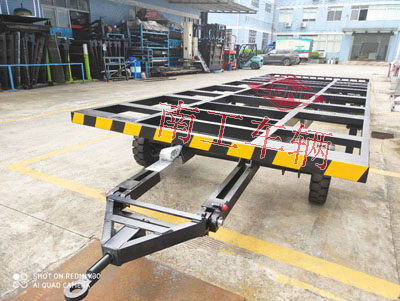

3. Rotary table type rotating frame, front wheels can rotate 180 degrees, buffer type traction frame (can be vertically fixed when not in use);

4. This vehicle is equipped with 4 threaded mechanical support legs;

5. B-type wave pin with anti decoupling connection (self-locking);

6. The front and rear wheels are equipped with adjustable wheel chocks, which can be parked on a 5-degree slope when the feet are lowered and the chocks are placed on top;

7. Color: Matte black, with yellow warning stripes sprayed around.

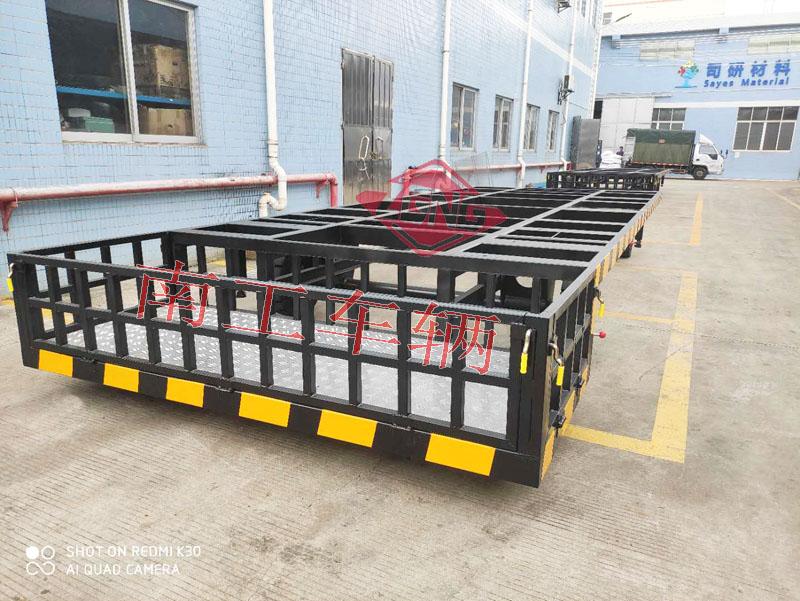

The airport project uses a flatbed trailer heavy-duty 8-ton mobile tool vehicle manufactured by Nangong, which has the characteristics of heavy load capacity, long service life, good quality, excellent price, and fast delivery.

Application scenarios: Industrial flatbed trucks are widely used for short distance transportation of objects in various industries such as factories, logistics, and ports for transporting generator sets, storage tank equipment, and frequency converters. This trailer is used for object transportation turnover in airport projects
