Brand: Nangong

Model: NGTT03F-12/26-4S

Load capacity: 3T

Board size: 2.6 * 1.25 meters

Color: Dongfeng Blue

Net weight: 800KG

Detailed parameters of guardrail type 3-ton flatbed trailer group:

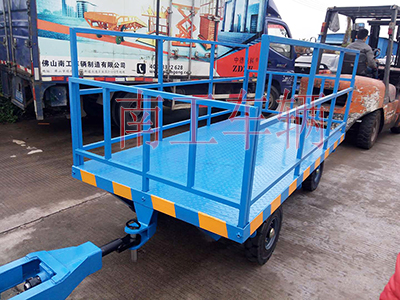

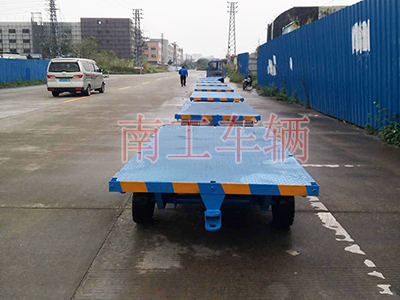

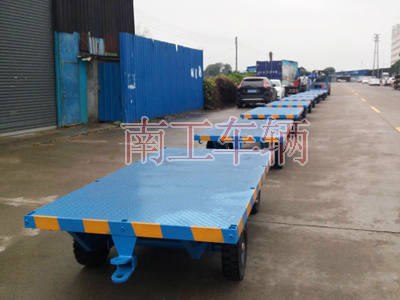

1. The carrying capacity of this vehicle is 3 tons, with a cargo area of 2.6 meters in length, 1.25 meters in width, and approximately 0.6 meters in height. The main structure is made of No. 8 steel, and the main beam is a welded composite beam. The surface of the board is covered with 4MM patterned plates. The front and rear parts of the vehicle are equipped with 600mm high plug-in guardrails, and the left and right sides are equipped with 900mm high plug-in guardrails.

2. The tires are 4 solid 500-8 tires, with a single wheel bearing capacity of 1.2 tons, using a two axle design, and a speed of 15KM/H.

3. The turntable is a 3-ton standard type with a 180 degree rotation, equipped with a 3-ton standard traction frame, which can be adjusted up and down and fixed. Different vehicles can be easily adjusted for traction, and a connecting device is installed at the rear of the vehicle to enable continuous traction.

4. Steel connected frame, with a minimum turning radius of 180 degrees for turning in place.

5. Color: Isuzu blue, with yellow warning stripes sprayed around.

6. Each unit is equipped with one dedicated connector and one pin.
